Lenovo ThinkPad P50 BP500 NM-A451: Complete Motherboard Guide
Discover everything about the Lenovo ThinkPad P50 BP500 NM-A451 motherboard. Learn about its features, specifications, common issues, repair tips, replacement options, and why the ThinkPad P50 is still a top workstation choice.
Introduction
The Lenovo ThinkPad P50 BP500 NM-A451 motherboard is the central hardware component of Lenovo’s powerful P50 workstation laptop. Designed for professionals in fields such as architecture, video editing, and 3D modeling, this motherboard ensures stability, performance, and expandability. In this guide, we will cover its features, importance, common issues, repair tips, and replacement options while highlighting why the ThinkPad P50 remains a popular workstation even today.
Lenovo ThinkPad P50 Overview
The Lenovo ThinkPad P50 is a 15.6-inch workstation laptop built for performance. It comes with Intel Xeon or Core i7 processors, NVIDIA Quadro professional graphics, and supports up to 64GB of DDR4 memory. At the core of this powerhouse is the BP500 NM-A451 motherboard, which enables all these high-end features to function seamlessly.

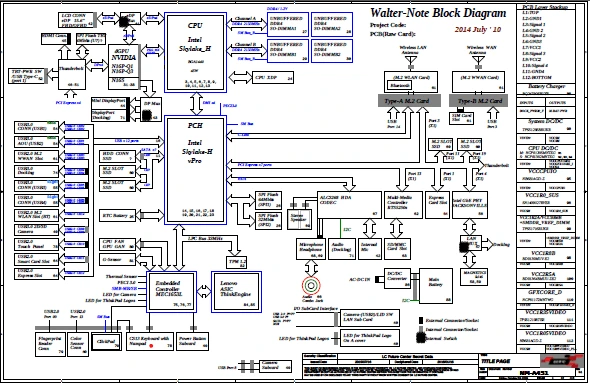

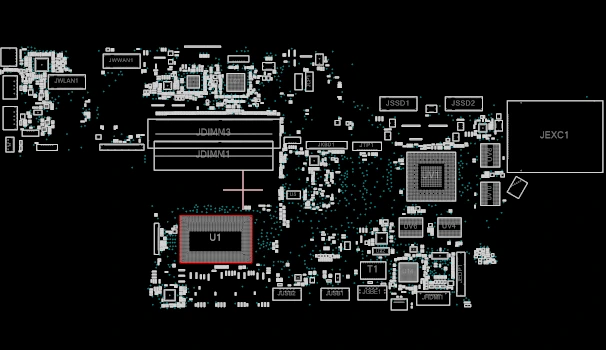

Lenovo Thinkpad P50 BP500 NM-A451 Bios+Boardview+PDF Free Download

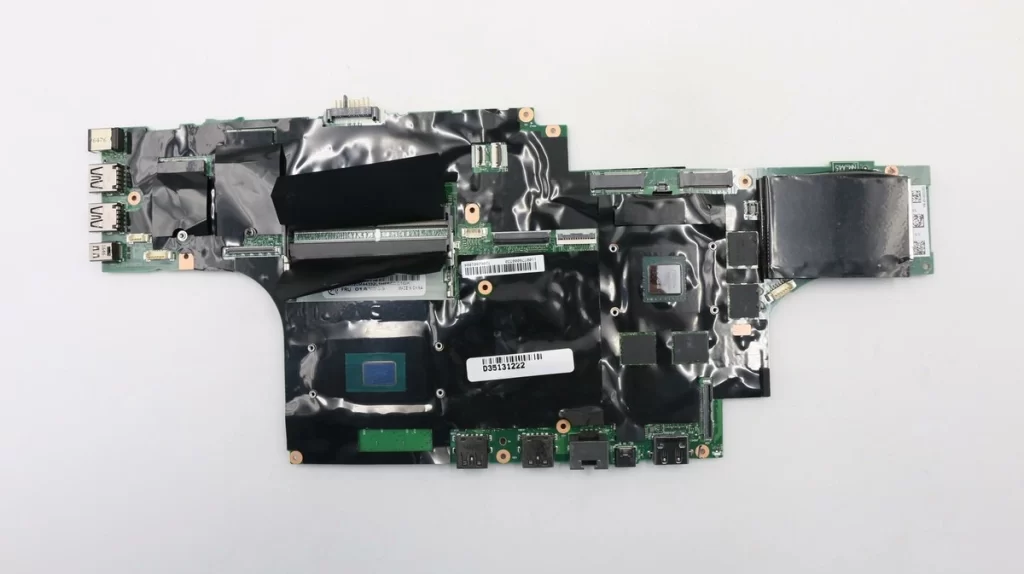

What is the BP500 NM-A451 Motherboard?
The BP500 NM-A451 is the official motherboard model used in the Lenovo ThinkPad P50. It acts as the backbone of the laptop, connecting major components like the CPU, GPU, RAM, and storage devices.
Key Specifications:
- Processor Support: Intel Xeon E3 and Intel Core i7 (6th/7th Gen)
- Graphics: NVIDIA Quadro dedicated GPU support
- Memory: Up to 64GB DDR4 (4 RAM slots)
- Storage Options: NVMe SSD, M.2 SSD, and SATA HDD support
- Connectivity: Thunderbolt, USB 3.0, HDMI, Mini DisplayPort, Ethernet
Importance of the BP500 NM-A451 in the ThinkPad P50
The motherboard determines what type of processor, graphics card, and memory the system can handle. In the Lenovo ThinkPad P50, the BP500 NM-A451 ensures:
- Stable workstation performance
- Long-term durability under heavy workloads
- Expandability with multiple storage and memory options
- Professional-grade graphics support for demanding applications
Common Issues with Lenovo ThinkPad P50 BP500 NM-A451
Like any motherboard, the BP500 NM-A451 can face hardware-related issues over time. Some common problems include:
- Laptop not powering on due to faulty power circuits
- No display or screen flickering caused by GPU or connector issues
- Overheating and shutdowns from thermal sensor failures
- RAM slot malfunctions limiting memory usage
- Charging problems caused by faulty power ICs
Repair and Maintenance Tips
Proper maintenance helps extend the life of the Lenovo ThinkPad P50 BP500 NM-A451 motherboard:
- Clean dust from cooling fans and vents regularly
- Replace CPU and GPU thermal paste every 1–2 years
- Use a cooling pad for heavy workloads like video rendering
- Keep the BIOS updated to fix compatibility issues
- Always seek professional repair services for motherboard-level issues
Replacement and Availability
If the BP500 NM-A451 motherboard fails completely, replacing it is often the best solution.
Tips for Buying a Replacement:
- Check the Model Number: Always confirm it matches BP500 NM-A451
- Buy from Trusted Sellers: Look for Lenovo-authorized resellers or highly rated third-party suppliers
- Warranty: Opt for a warranty-backed replacement, especially if refurbished
- Professional Installation: Motherboard replacement requires expert handling
Why the Lenovo ThinkPad P50 is Still Popular
Even years after its release, the Lenovo ThinkPad P50 remains a favorite in the refurbished workstation market.
Reasons for Its Popularity:
- Rugged durability (military-grade tested)
- Professional-grade workstation performance
- Easy upgrades for RAM and storage
- Affordable price in refurbished markets compared to newer models
FAQs About Lenovo ThinkPad P50 BP500 NM-A451
Q1. What is the BP500 NM-A451 in the Lenovo ThinkPad P50?
It is the official motherboard model that powers the Lenovo ThinkPad P50 workstation laptop.
Q2. Can I upgrade my Lenovo ThinkPad P50 motherboard?
Yes, you can replace it with the same BP500 NM-A451 model if the original fails, but it is not upgradable to different motherboard models.
Q3. How much RAM does the BP500 NM-A451 support?
It supports up to 64GB of DDR4 RAM across four slots.
Q4. Does the BP500 NM-A451 motherboard support NVIDIA Quadro GPUs?
Yes, it is designed to work with NVIDIA Quadro professional graphics cards, making it suitable for CAD, 3D, and video editing tasks.
Q5. Where can I buy a replacement Lenovo ThinkPad P50 BP500 NM-A451 motherboard?
You can purchase it from Lenovo service centers, trusted online retailers, or specialized laptop parts suppliers.
Conclusion
The Lenovo ThinkPad P50 BP500 NM-A451 motherboard is the foundation of one of Lenovo’s most reliable workstation laptops. From handling Intel Xeon processors and NVIDIA Quadro graphics to supporting high-capacity RAM and fast SSDs, it ensures the P50 remains a professional powerhouse.
By maintaining the motherboard with proper care and replacing it with genuine parts when necessary, you can extend the lifespan of your Lenovo ThinkPad P50 and continue to enjoy workstation-grade performance for years to come.
What is BIOS?
BIOS stands for Basic Input/Output System. It is a small program stored on a special chip on your computer’s motherboard. When you turn on your computer, the BIOS is the very first software that runs — even before Windows, Linux, or any operating system starts.
Think of the BIOS as the bridge between your computer’s hardware and software.
Main Functions of BIOS
- Power-On Self Test (POST):
When you press the power button, the BIOS checks if the computer’s essential hardware (CPU, RAM, keyboard, storage drives, etc.) is working correctly. - Boot Loader:
After the checks, the BIOS looks for the operating system (Windows, Linux, etc.) stored on your hard drive, SSD, or USB, and starts loading it. - Hardware Control:
BIOS manages low-level communication between hardware components such as the processor, memory, storage, and input/output devices. - Configuration Settings:
Users can enter the BIOS setup screen (by pressing keys like F2, DEL, or F10 during startup) to configure things such as:- Boot order (choose whether to boot from SSD, USB, or CD/DVD)
- Enabling/disabling hardware components
- Overclocking options (in some systems)
- Security features like BIOS password
Types of BIOS
- Legacy BIOS: The older version found in older PCs. It has limited features.
- UEFI (Unified Extensible Firmware Interface): The modern replacement for BIOS. It is faster, more secure, and supports larger hard drives. Most new laptops and desktops use UEFI.
Why BIOS is Important
Without BIOS (or UEFI), your computer would not know how to:
- Turn on hardware components
- Detect storage devices
- Load the operating system
It’s basically the starting point of your computer.
✅ In short: BIOS is the system firmware that initializes your PC hardware and loads the operating system when you turn on your computer.
